SS Cryogenic hose

Category:

Product description

Cryogenic hose is designed with the combination of multi-layer of different polymers and spirals in stainless steel 316 with the latest manufacturing technology that makes it an excellent and safe solution to support cryogenic products At temperatures up to -50ºC and working pressures up to 25 bar.
Contact now

Product Details


Description

Cryogenic hose is designed with the combination of multi-layer of different polymers and spirals in stainless steel 316 with the latest manufacturing technology that makes it an excellent and safe solution to support cryogenic products At temperatures up to -50ºC and working pressures up to 25 bar.

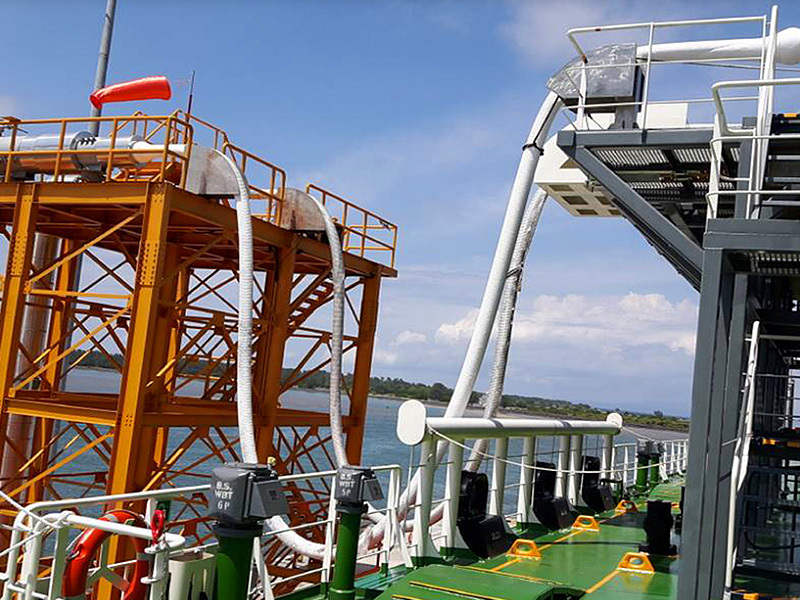

In typical applications such as charge discharge of liquefied petroleum gas or ammonia gas both in trucks, wagons and Marine applications. Included bunkering operations ship to ship.



Construction

Inner Wire spiral: Stainless Steel 304/316L (S)

Outer Wire spiral: Stainless Steel 304/316L (S)

Inner Lining: Polypropylene

Cover: PVC Coated Polyester Cloth



Features

Size: 1” to 12”

Norms: EN 13766:2010 /CCS

Temperature range: -50℃ +80℃

Safety factor: 5:1

Vacuum: 0.9 bar

Max. Length : 30 m.
