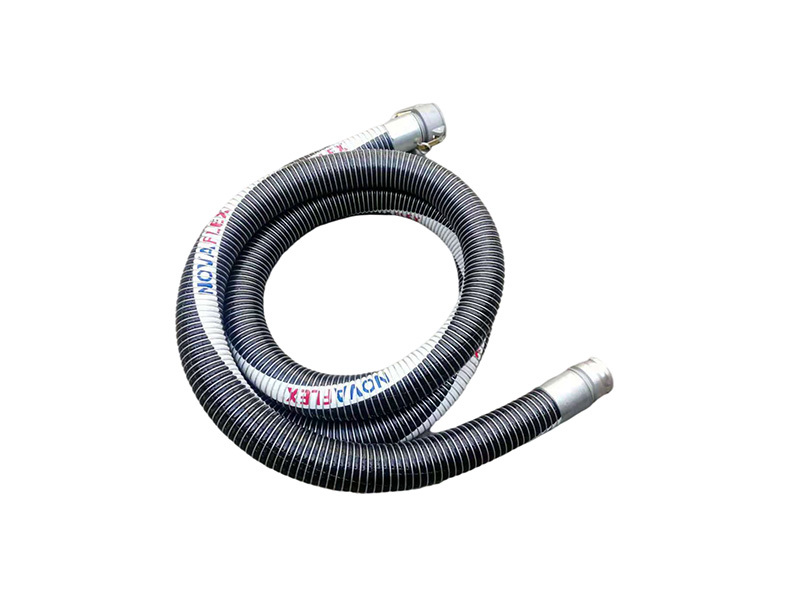

SS High-temp composite hose

Category:

Product description

High-temp composite hose is designed for applications such as Bitumen, Hot air, Hot oil, etc. for loading / unloading trucks, wagons, plants and even Marine applications.
Contact now

Product Details


Description

High-temp composite hose is designed for applications such as bitumen, hot air, hot oil, etc. for loading / unloading trucks, wagons, plants and even Marine applications.

The internal and external spirals in stainless steel 316 can be used in the most extreme external conditions and corrosive environment. Its light weight makes it an alternative to heavy rubber hoses.



Construction

Inner Wire spiral: Stainless Steel 304/316L (S)

Outer Wire spiral: Stainless Steel 304/316L (S)

Inner Lining: Polypropylene

Cover: PVC Coated Polyester Cloth



Features

Size: 1” to 12”

Norms: EN 13765:2010 /CCS

Temperature range: -30℃ +150℃

Safety factor: 5:1

Vacuum: 0.9 bar

Max. Length : 30 m.
