Zhuoli

AG OIL HOSE

Category:

Product description

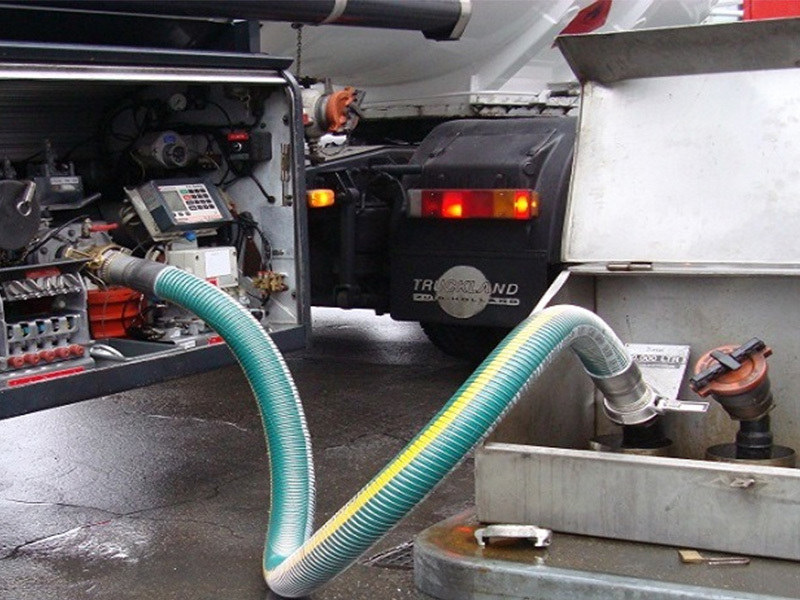

AG composite hose is designed for applications such as rail car loading and unloading, road tanker bottom loading, lubricating oil plant hose exchanges. . Due to the combination of its spirals in aluminum and galvanized steel is significantly lighter, making it possible to use even in marine applications with large diameters.
Contact now

Product Details


Description

AG composite hose is designed for applications such as rail car loading and unloading, road tanker bottom loading, lubricating oil plant hose exchanges. Due to the combination of its spirals in aluminum and galvanized steel is significantly lighter, making it possible to use even in marine applications with large diameters.



Construction

Inner Wire spiral: Aluminum (A)

Outer Wire spiral: Galvanized Steel (G)

Inner Lining: Polypropylene

Cover: PVC Coated Polyester Cloth



Features

Size: 1” to 4”

Norms: EN 13765:2010 /CCS

Temperature range: -30℃ +80℃

Safety factor: 5:1

Vacuum: 0.9 bar

Max. Length : 30 m.
