GG High-temp composite hose

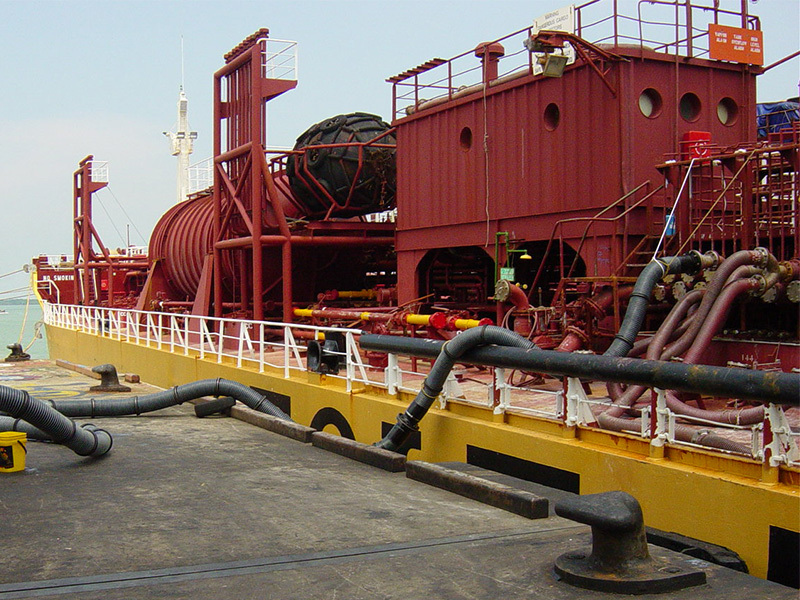

High-temp composite hose is specifically designed as an hose for the transfer of HOT OIL and BITUMEN under positive or negative pressures, The hose are used in such applications as transfer for rail and road tanker loading and unloading, storage tank and in-plant use. Extremely flexible, easy to handle and bend, even at very high or very low outdoor temperatures.
Inner Wire spiral: Galvanized Steel (G)
Outer Wire spiral: Galvanized Steel (G)
Inner Lining: Polypropylene
Cover: PVC Coated Polyester Cloth
Size: 1” to 12”
Norms: EN 13765:2010 /CCS
Temperature range: -30℃ +150℃
Safety factor: 5:1
Vacuum: 0.9 bar
Max. Length : 30 m. Other under request.
